RGB-RTII SERIES
INDOOR & OUTDOOR
Rental LED Screen

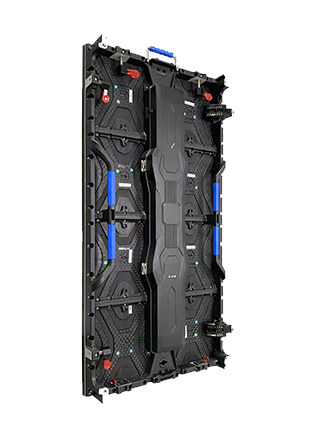

Rental Outdoor & Indoor LED Display Screen
Dimension: 500*1000mm/500x500mm
Pixel Pitch Indoor:2.6mm, 2.9 mm, 3.9 mm, 4.8 mm
Pixel Pitch Outdoor: 2.9mm, 3.9 mm, 4.8 mm
Ultra thin, light weight for easy transport
die-casting aluminum, High precision, seamless splicing
Full Front maintenance and rear maintenance
Magnetic module design, module, power supply can take out by front, maintenance speed faster than traditional produdcts
Save maintenance time and costs
500x1000 and 500x500 cabinet can Mixed splicing
One-man operation, quick assemble, convenient installation
Various installation methods,hanging installation and Stacking installation
Suitable for different shapes
rental curve LED screen
90 degree rental LED screen
with 45 degree Bevel Edges, build 90 degree cabinet
Model | ||||
Pixel Pitch(mm) | P2.604 | P2.976 | P3.91 | P4.81 |
Resolution | 96×96 | 168X168 | 128X128 | 104X104 |
Module size | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
Actual Cabinet Dimensions(WxHmm) | 500x1000mm 500x500mm | 500x1000mm 500x500mm | 500x1000mm 500x500mm | 500x1000mm 500x500mm |
Overall Dimensions(WxHxDmm) | 500x500x80mm | 500x500x80mm | 500x500x80mm | 500x500x80mm |
Weight(kg) | 12.5/7kg | 12.5/7kg | 12.5/7kg | 12.5/7kg |
Brightness(nits) | 5000 | 5000 | 5000 | 5000 |
Scan | 24s | 21s | 16s | 13s |
Color Temperature | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k |
Viewing Angle(H./V.) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
Gray Scale(Bit) | 16 | 16 | 16 | 16 |
Fresh rate(Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
Working Voltage | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ |
Power Consumption Max(W) | 640 | 640 | 640 | 640 |
Power Consumption AVG(W) | 240 | 240 | 218 | 240 |
Operating Temp(℃) | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ |
Maintenance way | Front/back | Front/back | Front/back | Front/back |
