RGB-RT COB SERIES
OUTDOOR & INDOOR
COB RENTAL LED DISPLAY

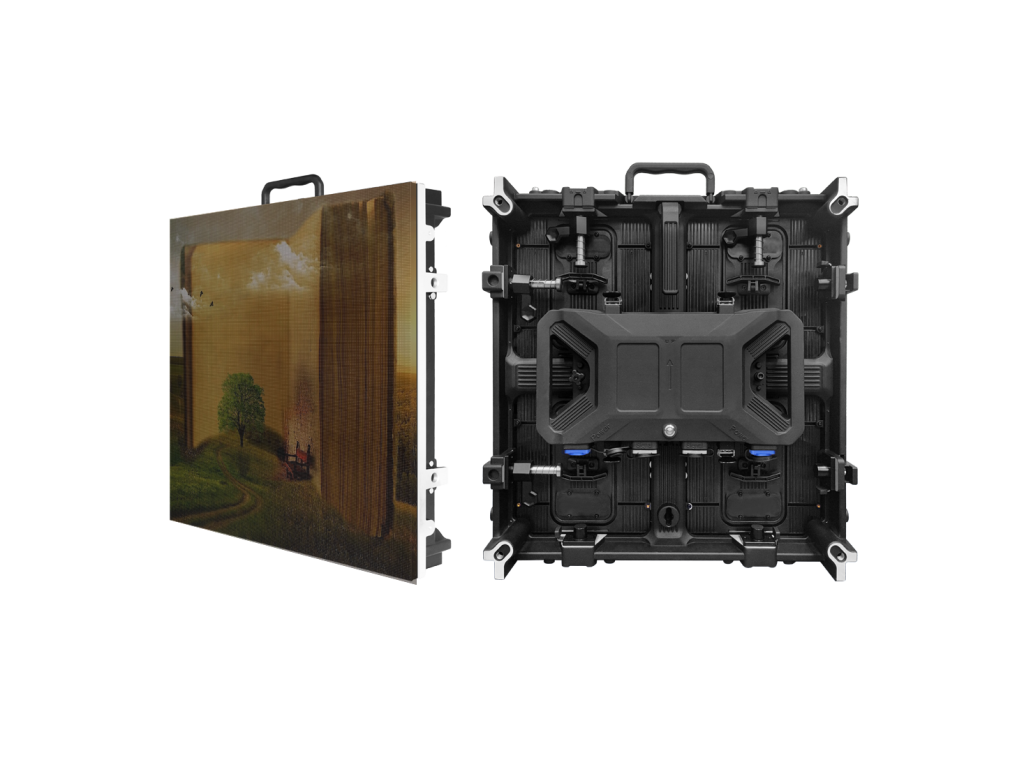

Outdoor and indoor COB rental LED DISPLAY
Indoor & outdoor module: P1.984
Standard size: 500x500mm/500x1000mm
500x500mm and 500x1000mm Can be mixed and spliced
Cabinet surface COB design, IP 65 protection
Dust-proof, anti-collision, anti-static.
Especially for rental stage projects, COB design can effectively protect the module and extend its lifetime
Module 45 degree beveled edge, cabinet 90 degree right angle
High brightness COB DESIGN
Outdoor High Brightness with 3000nits.
High definition image, Vivid colors,high-quality can do 7680hz, 3840hz, 1920hz
Power control box, Hard Wired
Module with Control box, with Pin Connect. No Excess ribbon cables
Convenient and tidy
Quick assemble and disassemble, save working time
Module | ||
1 | Product model | Indoor & outdoor |
2 | Pixel pitch | 1.9 mm |
3 | Module size | 250x250mm |
4 | Module resolution | 126x126pixels |
5 | LED | COB 1R1G1B |
Cabinet | ||
1 | Cabinet size | 500X500mm |
2 | Cabinet resolution | 252X252pixels |
3 | Cabinet material | DIE-CASTING |
4 | Cabinet weight | 7 kg |
Screen | ||
1 | Pixel density | 254016 Pixels/m2 |
2 | Brightness | 3000 nits |
3 | Grey level | 16bit |
4 | Constract | 3000：1 |
5 | Fresh rate | 1920-7680 Hz |
6 | Driving model | 1/21 |
7 | View angle（H/V） | 160°/160° |
8 | IP grade（Front/Back） | IP65 |
9 | Power（Max/Ave） | 650/150 W |
10 | Input voltage | 110 V -240 V |
11 | Working temperature | -20℃～50℃ |
12 | Best view distance | ≥5 m |
13 | Singal supoort | AV,S-Video,VGA,DVI,HDMI,SDI,DP |
14 | Control distance | Cat5:＜100m；Single mode fiber:＜10km |
