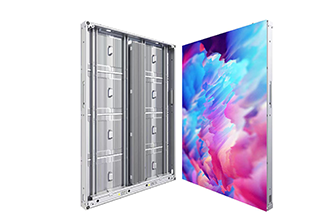

RGB-FX I SERIES
OUTDOOR LED ADVERTISING KIOSK
High quality LED display
Dual Service with Frontal and Real Maintenance
High Protection Aluminum Chassis Panel Design
Module size 250x250mm
High brightness LED screen, can reach 10000nits
Each cabinet only 30KG
3D LED Display
High quality LED display can used for 3D LED display, 3D LED Billboard
High quality LED cabinet can used for 90 degree cabinet
High quality LED billboard
Dual interface module design
dual power interfaces, dual signal interfaces
left and right module can swap
Fast disassemble power box, power box can maintenance via front
Fast Cooling Technology
Module and cabinet aluminum design
Super strong heat dissipation performance, reducing failure rate
Fully enclosed design，IC and PCB hidden design， IP68 protection grade
Dustproof, moisture-proof, anti-corrosion
High-quality LED Module
Model |
|
|
|
|
|
Pixel Pitch(mm) | P3.91 | P4.81 | P6.25 | P7.8 | P10.4 |
Resolution | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 |
Module size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
Actual Cabinet Dimensions(WxHmm) | 1000×1000/1000×1500/1500×1000 | ||||
Overall Dimensions(WxHxDmm) | 1000x1000x90 | ||||
Weight(kg) | 30 | ||||
Cabinet material | Aluminum | ||||
Brightness(nits) | 4500-6500 | 4500-6500 | 6500-9500 | 6500-9500 | 6500-10000 |
Scan | 16s/8s | 13s/7s | 5s | 4s | 2s |
Viewing Angle(H./V.) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
Gray Scale(Bit) | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
Fresh rate(Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
Working Voltage | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ |
Power Consumption Max(W) | 800 | 800 | 720 | 650 | 650 |
Power Consumption AVG(W) | 260 | 260 | 240 | 220 | 220 |
Operating Temp(℃) | -30℃～+50℃ | -30℃～+50℃ | -30℃～+50℃ | -30℃～+50℃ | -30℃～+50℃ |
