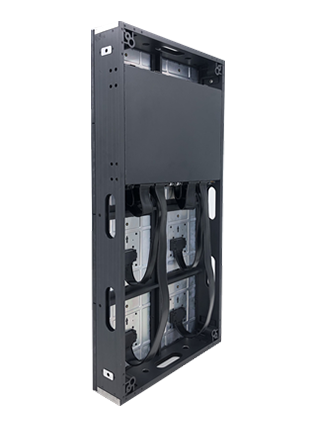

RGB-FXII SERIES
OUTDOOR LED ADVERTISING DISPLAY
P2.6, P3.91 Outdoor Front maintenance LED screen
Ultra thin and light weight for fixed installation
SUPER MAGNET MODULE,FRONT ACCESS
Special design, aluminum module buttom, Aluminum body
Powerful hear dissipation function
Adapt to high temperature environment without cooling treatment
Various Sizes Can Be Customized
Module size 250x250mm
cabinet size can make 500x1000mm, 500x750mm, 750x750mm, 750x1000mm, 250x1000mm
IP68 protection grade
Module Fully enclosed design, Power box fully enclosed design
IP68 protection grade
Dust, moisture, and corrosion prevention
Full Front Maintenance
Save installation space, steel structure costs
Pixel pitch | 2.6 | 3.91 |
Module size | 250×250 | 250x250mm |
LED type | SMD1415 | SMD1921 |
Pixel density dots/m2 | 147929 | 65410 |
Cabinet size(mm) | 500*1000/500*750/500*500 | |
Cabinet material | Aluminum | Aluminum |
Cabinet weight | 28kg/m2 | 28kg/m2 |
Brightness | 5500 nits | 5500 nits |
Grey level | 16bit | 16bit |
Contrast | 3000：1 | 3000：1 |
Fresh rate | ≥3840Hz | ≥3840Hz |
Driving model | 1/28 | 1/16 |
View angle（H/V） | 140°/140° | 140°/140° |
IP grade | IP65/IP65 | IP65/IP65 |
Power consumption Max/Av | 850/280 W | 850/280 W |
Input voltage | 110 V -240 V | 110 V -240 V |
Best view distance | ≥3 m | ≥4m |
Maintenance way | Front/back | Front/back |
