COB Shelf LED display
COB shelf LED display Ultra high definition LED display screen
high definition
High brightness
high resolution
HD LED display
What’s COB LED display?
For mini COB LED display, Each pixel pitch on the front of the LED display is composed
of R, G, B fully flip chip, by integrated packaging, Each chip fixed to the printed circuit
separately On the board.
3RGBLED high definition COB LED display,
cabinet with 16:9 ratio. Easy make 2k, 4k,8k

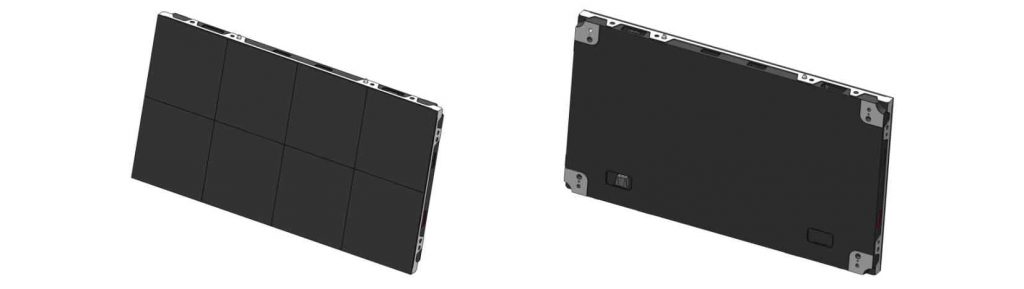

Ultra slim Cabinet
Ultra thin cabinet

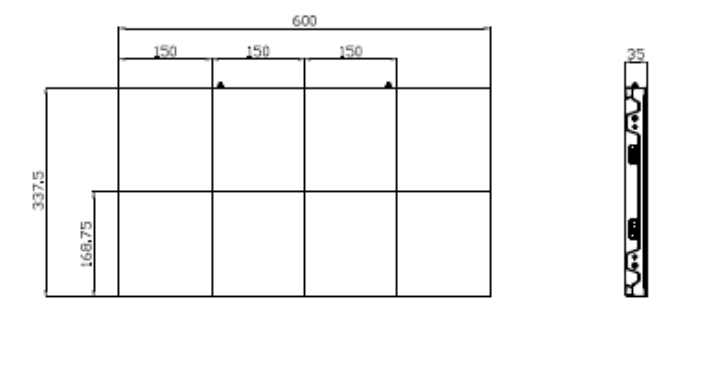

COB LED screen, cabinet size: 600×337.5mm
Dual power supply and dual receiving card backup
3RGBLED COB LED display, not only power supply dual, but also receiving card dual
Ensure zero fault during the event, Especially for TV station projects, TV broadcasting is very important
Front maintenance, multiple installation methods
Support back frame installation, mobile bracket
Wall mounted LED display
Hanging
Embedded installation
Easy and fast operation
Available pixel pitch: P0.9 COB LED display
P1.25 COB LED display
| Model | |||||
| Pixel Pitch(mm) | P0.9 | P1.25 | P1.56 | P1.875 | P2.5 |
| Module Resolution | 320*180 | 240*135 | 192*108 | 160*90 | 120×67.5 |
| Module size(mm) | 300*168.75 | 300*168.75 | 300*168.75 | 300*168.75 | 300*168.75 |
| Cabinet Dimensions | 600*337.5mm | 600*337.5mm | 600*337.5mm | 600*337.5mm | 600*337.5mm |
| Weight(kg/cabinet) | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Brightness(nits) | 600 | 600 | 800 | 800 | 1000 |
| Scan | 46s | 45s | 48s | 45s | 30s |
| Color Temperature | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k | 2500k~10000k |
| Viewing Angle(H./V.) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Gray Scale(Bit) | 16 | 16 | 16 | 16 | 16 |
| Fresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Working Voltage | AC:100V~240V | AC:100V~240V | AC:100V~240V | AC:100V~240V | AC:100V~240V |
| Power Consumption Max(W) | 350 | 350 | 350 | 350 | 350 |
| Power Consumption AVG(W) | 100 | 100 | 100 | 100 | 100 |
| Operating Temp(℃) | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ | -10℃～+50℃ |
P1.56 COB LED display
P1.875 COB LED display
