OUTDOOR 2FT*1FT FXIII SERIES
Outdoor LED ADVERTISING SCREEN

Lightweight, slim and
streamlined design.

The design is streamlined to ensure a high-quality display with a lighter weight, slimmer cabinet and thinner bezels.

Outdoor FIX III插图3
Outdoor FIX III插图4

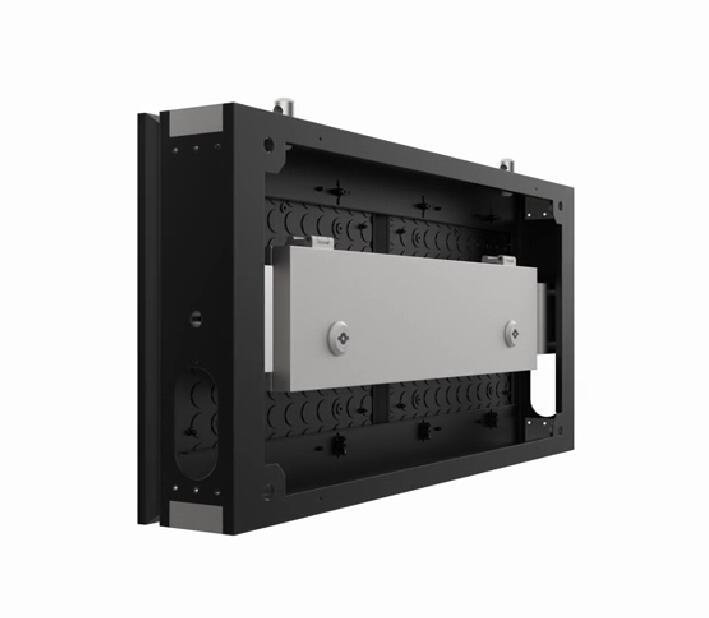

Fast front service, Easy maintenance, save labor cost

Structure back side no need big space, save structure cost

Modular design

cabinet, power box, Mobile installation framework. are Unified modular design,The assembly process of the cabinet is simple and flexible.

Outdoor FIX III插图5
Outdoor FIX III插图6

45 Degree Mdoule design, Can use as 3D round LED Display

Without Build extral frame, RGB FXIII LED display can make any round shape, and 3D video wall, all in one design.

Specifications

Outdoor FIX III插图7

Model

 Outdoor

 Outdoor

 Outdoor

Pixel Pitch(mm)

P4.76

P6.35

P9.525

Resolution

128×64

96×48

64×32

Module size (mm)

609.6×304.8

609.6×304.8

609.6×304.8

Actual Cabinet Dimensions(WxHmm)

609.6×304.8

609.6×304.8

609.6×304.8

Overall Dimensions(WxHxDmm)

609.6×304.8×63

609.6×304.8×63

609.6×304.8×63

Weight(kg)

3.9

3.9

3.9

Brightness(nits)

6500-10000

6500-10000

6500-10000

Color Temperature

2500k~10000k

2500k~10000k

2500k~10000k

Viewing Angle(H./V.)

160°/160°

160°/160°

160°/160°

Gray Scale(Bit)

16

16

16

Fresh rate(Hz)

1920-3840

1920-3840

1920-3840

Working Voltage

AC:100V~240V

50/60HZ

AC:100V~240V

50/60HZ

AC:100V~240V

50/60HZ

Power Consumption Max(W)

800

550

550

Power Consumption AVG(W)

260

180

180

         Operating Temp(℃)

-30℃~+50℃

-30℃~+50℃

-30℃~+50℃
