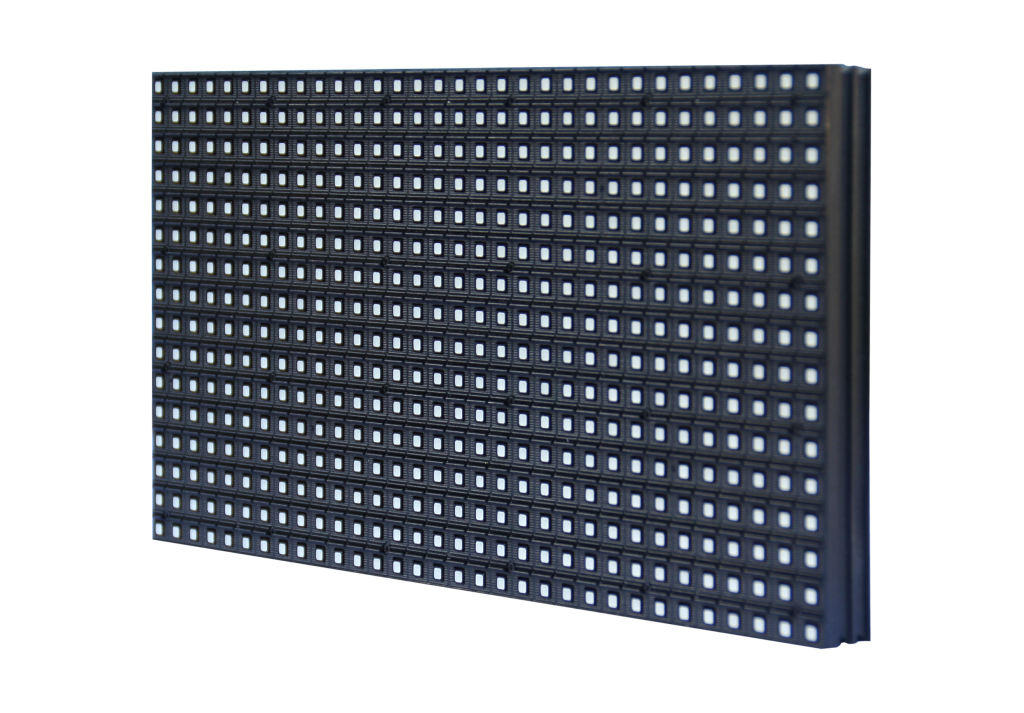

Outdoor LED Module



Outdoor LED Display Module
LED screen panel module
Outdoor High brightness LED module
High Brightness LED sign Panel


Outdoor led display module
High Brightness and Best Color Uniformity
waterproof level IP65 outdoor full Color LED sign module with standard size and module suite with same screws holes.

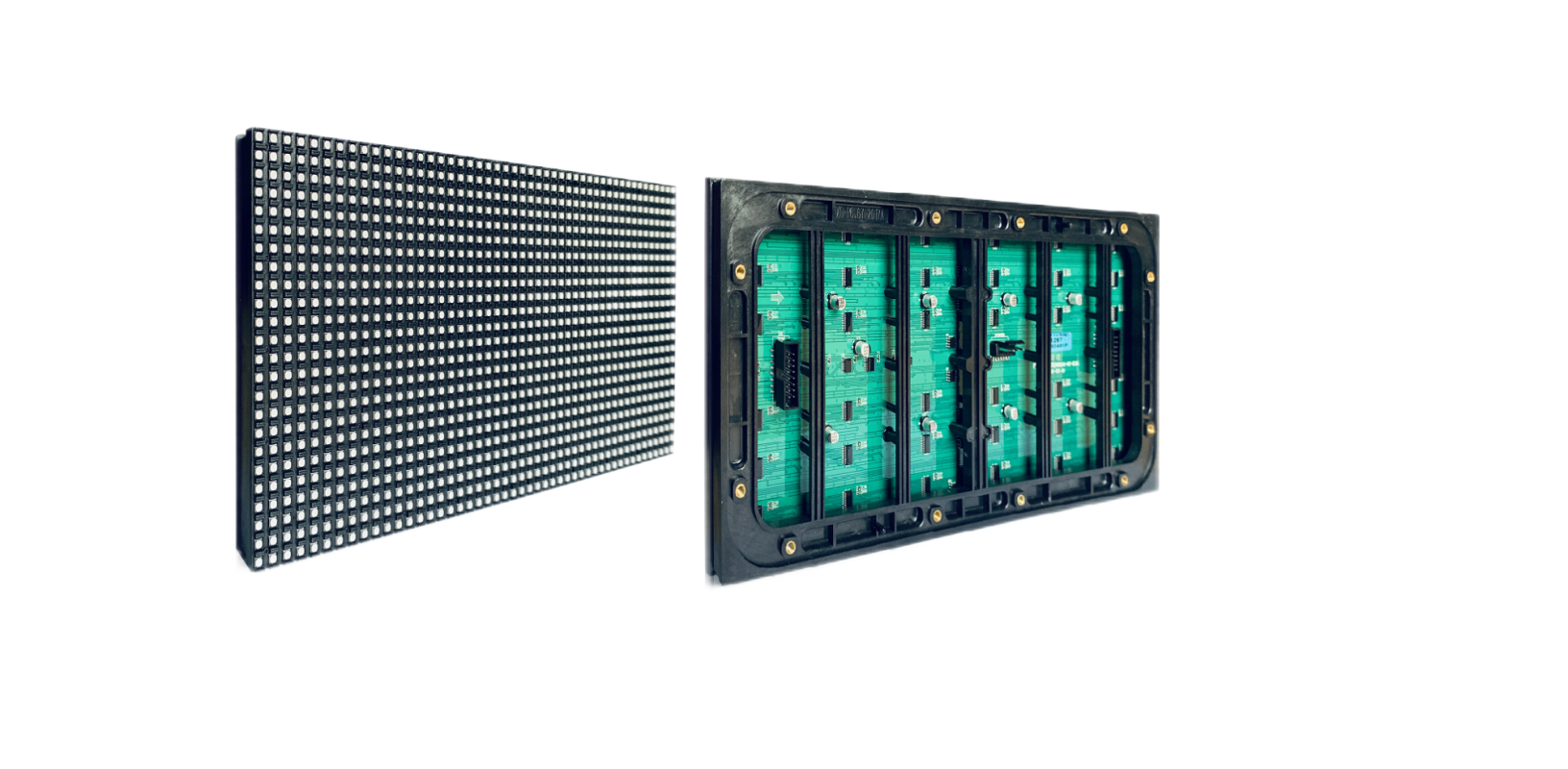

Outdoor SMD LED Screen Module
Outdoor SMD LED Display Module, including P3.33, P4, P5, P6.67, P8 and P10 with the same led module size 320mmx160mm and module suite with same screws holes,can repalce the led module freely ,do not need to change the existing led display cabinet and structure.


High Brightness outdoor LED display module
Brightness from 5500-10000nits
Available module: P2.5, P3, P3.33, P4, P5, P6, P6.67, P8, P10
Model | ||||||||
Pixel Pitch(mm) | P2.5 | P3 | P4 | P5 | P5.926 | P6.6 | P8 | P10 |
Resolution | 64×64 128×64 | 64×64 | 64×32 80×40 | 64×32 | 54×27 | 48×24 | 32×16 40×20 | 32×16 |
Module size | 160x160mm 320x160mm | 192x192mm | 256x128mm 320x160mm | 320x160mm | 320x160mm | 320x160mm | 256x128mm 320x160mmm | 320x160mm |
Scan | 16s | 16s | 8s/10s | 8s7 | s | 6s | 4s/5s | 2s/4s |
Brightness(nits) | 5500 | 6000 | 6500/5500 | 6000 | 6000 | 6000 | 6000 | 5500/7000 |
Viewing Angle(H./V.) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
Gray Scale(Bit) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Fresh rate(Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
Working Voltage | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ | AC:100V~240V 50/60HZ |
Operating Temp | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ | -10℃~+50℃ |
Humidity Range | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH | 10%~90%RH |
